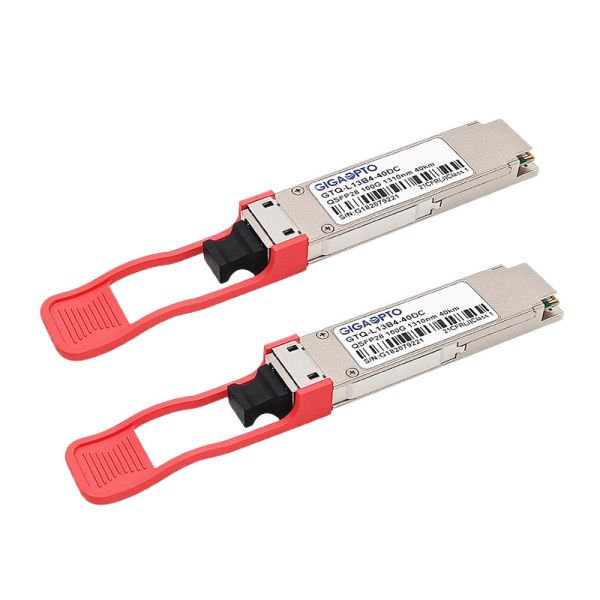

Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver 40km SMF Module
Description Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver
The 100GBASE-ER4 optical transceiver is designed for use in 100GBASE Ethernet throughput up to 40km (with host FEC) over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.
This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 Lite standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA.
This 100GBASE-ER4 optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco QSFP-100G-ER4L-S transceivers, with excellent interoperation on Cisco QSFP28 port optical transport devices, such as Cisco Chelsio 100G switches/routers/firewalls/NICs.
Specification Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver
| Compatible Brand |
Cisco |
Compatible P/N |
QSFP-100G-ER4L-S |
| Item Name |
100GBASE ER4 |
Form Factor |
QSFP28 |
| Wavelength |
1295 - 1310nm LAN WDM |
Bit-Rate (Gbps) |
103.125Gbps |
| Connector |
LC Duplex |
Reach |
40km (with host FEC); 30km (without host FEC) |
| Transmitter Part |
4x EML |
Receiver Type |
APD |
| TX Output Power |
-2.9~4.5dBm |
RX Sensitivity |
<-20.9dBm |
| Optical budget |
18dB |
Saturation |
>-4.9dBm |
| Power Dissipation |
≤4.5W |
Extinction Ratio |
>4dB |
| Digital Diagnostic |
Supported |
Fiber Type |
single-mode fiber |
| Packaging Technology |
BOX Packaging |
Temperature Range |
Standard 0 to 70°C (32 to 158°F) |
| CDR |
TX & RX Built-in CDR |
Modulation Format |
NRZ |
Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.
| Distance |
≤ 10km |
≤ 20km |
| Attenuator |
10dB |
5dB |
Products Features Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver
- Hot pluggable QSFP28 100GBASE-ER4 Optical Transceiver
- Functionally equivalent to Cisco QSFP-100G-ER4L-S
- Supports 103.1Gb/s aggregate bit rate
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05,1304.58, 1309.14nm),Receiver: 4x25Gb/s APD ROSA
- Link up to 30km over G.652 SMF without FEC or 40km over G.652 SMF with FEC
- Compliant with Ethernet 100GBASE-ER4 Lite
- Internal CDR circuits on both receiver and transmitter channels
- Duplex LC receptacle
- Single 3.3Vpower supply
- Maximum power dissipation:4.5W
- Commercial operating case temperature range:0°C to 70°C
- Built-in digital diagnostic functionality
Applications Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver
- 100GBASE-ER4 Ethernet Links
- Infiniband QDR and DDR Interconnects
- Client-side 100G Telecom connections
FAQ
Q: Are you a trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What are your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of the Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty of the Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver? What is your MOQ Of Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label and package on this Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
Q: What are your payment terms for Cisco QSFP-100G-ER4L-S Compatible 100GBASE ER4 Transceiver?
We accept T/T, Western Union, Paypal, L/C, etc . For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.
Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
